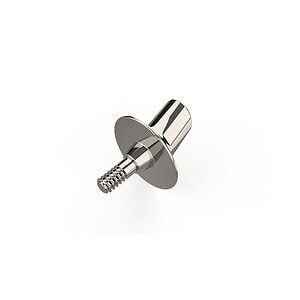

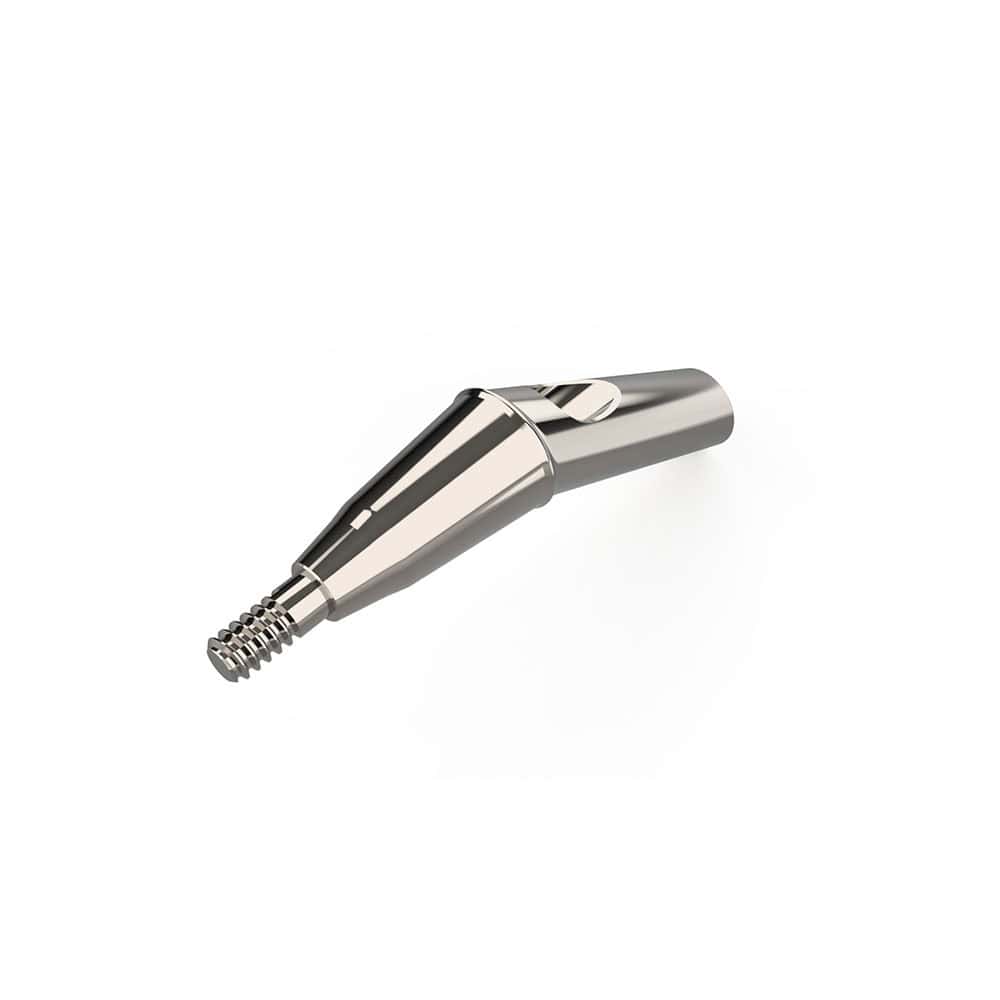

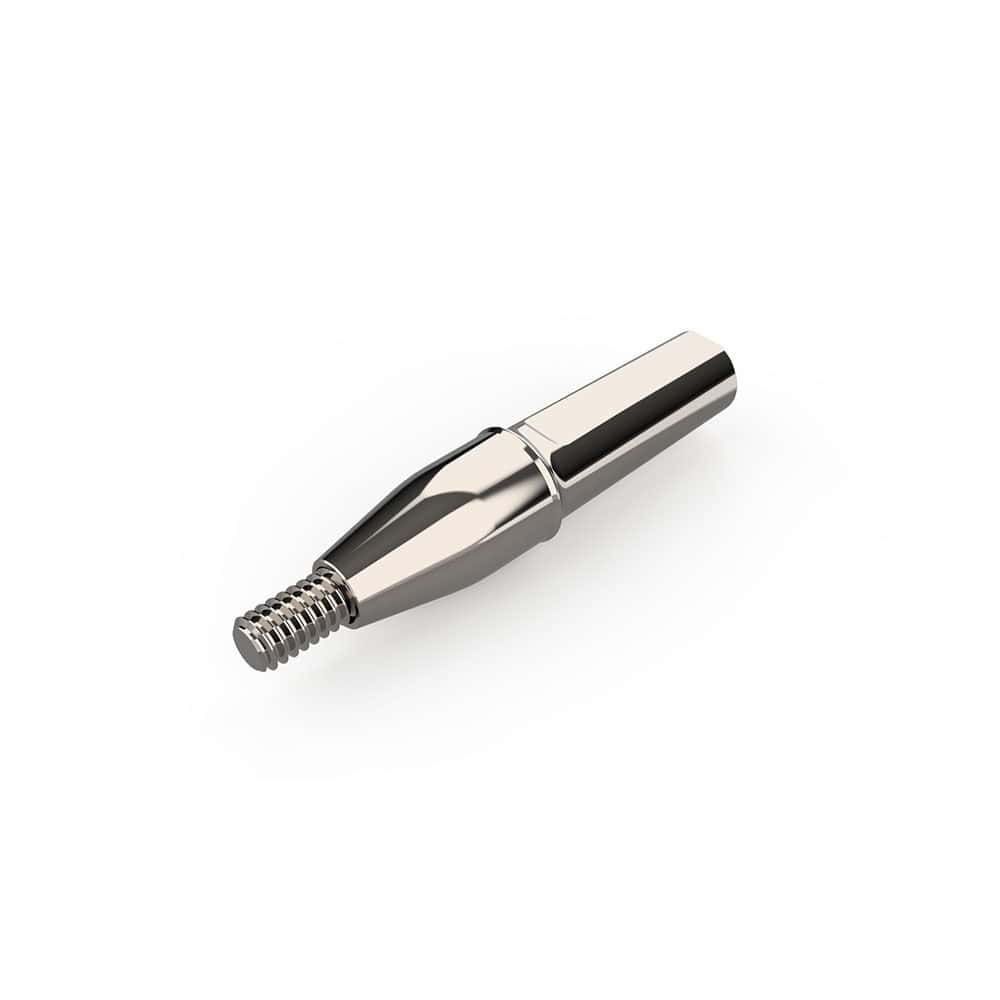

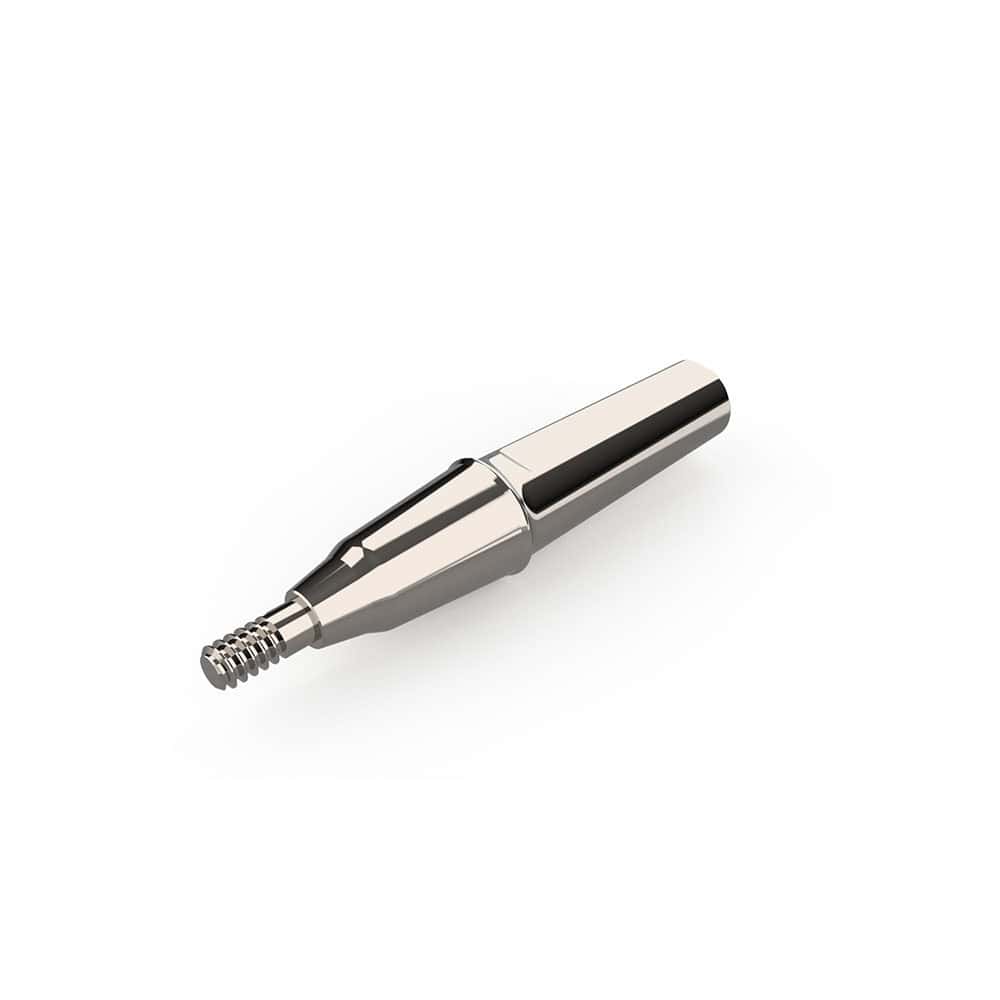

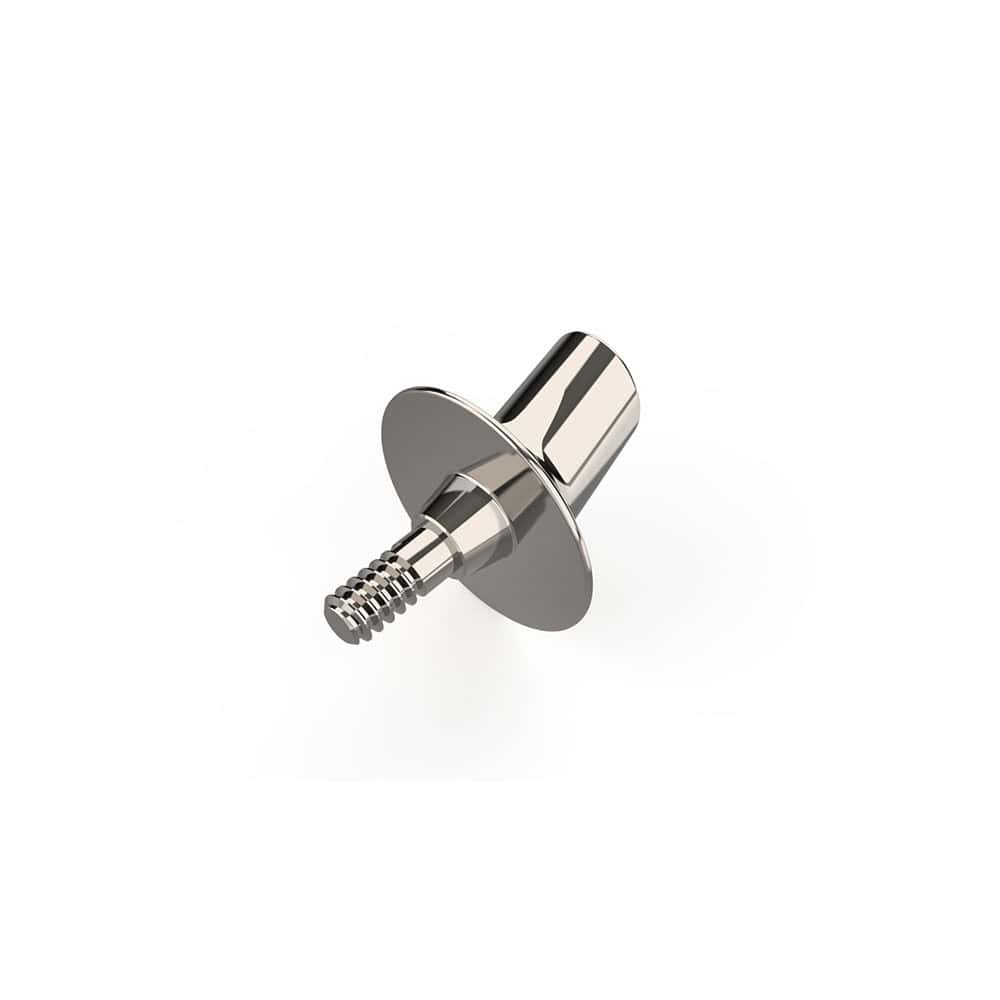

Conical Abutment

SKU: NYAA Category: Dental Implant Tag: Abutment Brand: ZHIMEI

Model

Clear

Add to Quote

With its tapered connection, the Conical Abutment offers excellent sealing and load distribution. It is ideal for achieving a strong, bacterial-tight interface, reducing the risk of micro-movement and peri-implantitis.

Description

No.	Model	Code	Socket Type	Specifications
1	A	NYAA-D(XX)-GH(XX)-H(XXX)-A(XX)	Conical	Transgingival height (mm): 1–6, tolerance ±0.2
				Restorative height (mm): 4–10, tolerance ±0.2
				Abutment angle (°): 0–25°, tolerance ±1°
		NL/YAA-D(XX)-L(XX)		Abutment wall thickness (mm): ≥0.5
				Abutment diameter (mm): 4–7, tolerance ±0.2
				Shoulder radius (mm): 0–1, tolerance ±0.2
2	A	RYAA-D(XX)-GH(XX)-H(XXX)-A(XX)	Conical	Transgingival height (mm): 1–6, tolerance ±0.2
				Restorative height (mm): 4–10, tolerance ±0.2
				Abutment angle (°): 0–25°, tolerance ±1°
		RL/YAA-D(XX)-L(XX)		Abutment wall thickness (mm): ≥0.5
				Abutment diameter (mm): 4–7, tolerance ±0.2
				Shoulder radius (mm): 0–1, tolerance ±0.2
